UNIProbe TRUCK / OHW Z04220 TEXA®

TEXA

  • €2.360,00
    Unit price per
  • Save €495
Tax included. Shipping calculated at checkout.

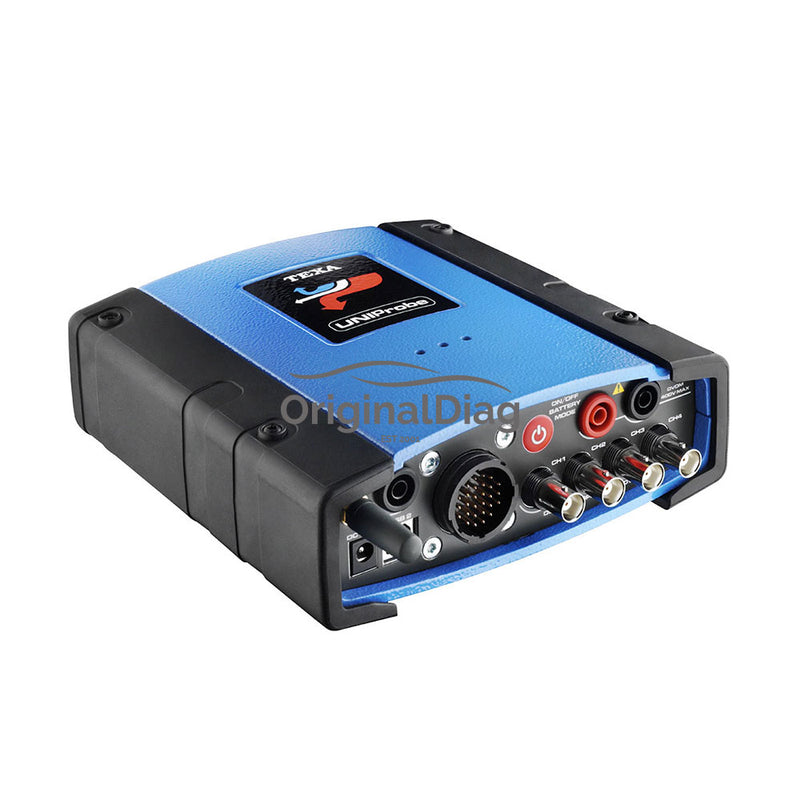

The UNIProbe is an device for analogue and digital type measurements; the best and most complete solution for all traditional diagnosis tests. The UNIProbe allows for the complete multi-make diagnosis and can intervene on cars, motorcycles, scooters, quad bikes and boats, as well as on light and heavy commercial vehicles, coaches and agricultural vehicles.

The UNIProbe communicates with all TEXA display units or with a Windows PC with USB connection or through Bluetooth technology, allowing the technician absolute freedom of movement around the vehicle and in the workshop. It's also fitted with an interior lithium battery that can guarantee exceptional autonomy. The UNIProbe reflects the TEXA philosophy on "two unit solutions" to the full, looking to completely eliminate wires within the workshop.

IMPRESSIVE FUNCTIONALITY

UNIProbe incorporates 6 different instruments in the one unit, including an oscilloscope with four independent channels that can take accurate and professional measurements from voltage sensors and current clamps.

UNIProbe lets you test batteries, starting and charging systems, perform electrical tests on CAN networks, measure voltage and resistance using a built-in multimeter, and measure fuel pressure with an external electronic sensor.

You can even use a signal generator to simulate the PWM signals produced by sensors and the PWM power signals that drive electromechanical actuators like solenoid valves and common rail pressure regulators.

TECHNICAL SPECIFICATIONS

POWER SUPPLY
8 - 32 VDC

INTERNAL BATTERY RECHARGE VOLTAGE
10 - 32 VDC, built-in 7.4 V, 1Ah lithium battery

BATTERY AUTONOMY
up to 5 hours

MAXIMUM CURRENT DRAW
1,2 A at 12 V

ENVIRONMENTAL
Operating temperature: 0 ÷ +45°C
Storage temperature: - 20 °C ÷ 60 °C
Operating relative humidity: 10 % ÷ 80 % non-condensing

DIMENSIONS
155x178x55 mm (excluding Bluetooth antenna)

WEIGHT
1,2 kg.

OSCILLOSCOPE

CHANNELS
4 independent input channels with analogue bandwidth of 10 MHz (-3 dB); sampling rate 20MSamples/sec at 10 bit with 1 or 2 channels active, 10 MSamples/sec at 10 bit with 3 or 4 channels active

MAX INPUT VOLTAGE
+/- 50 Vmax, AC or DC couplingbr

VERTICAL SCALE FOR EACH CHANNEL
from 20 mV/Div to 50 V/Div

HORIZONTAL SCALE
from 500 ns/Div to 5s/Div
