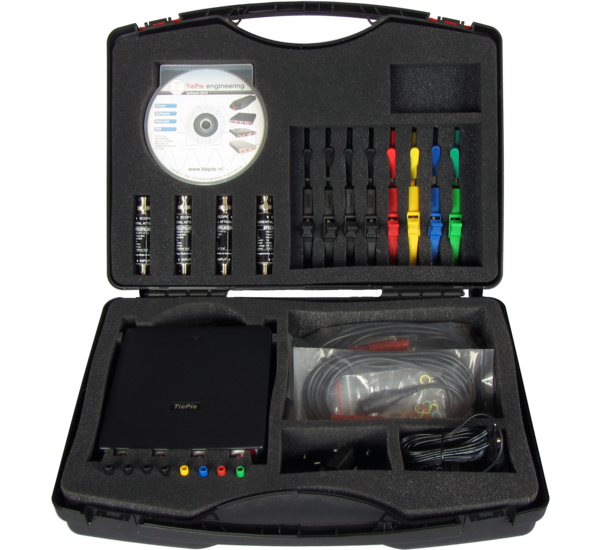

Automotive Diagnostic Oscilloscope ATS610004D-XMSG is an advanced four-channel differential USB oscilloscope designed for professional vehicle electronics diagnostics. It ensures accurate signal measurements while avoiding ground loops and ensuring safe operation.
The device offers 12–16-bit resolution, up to 1 GSa/s sampling rate, and a 250 MHz bandwidth. Each channel supports up to 256 million samples, making it suitable for capturing both short and long-duration signals. Differential inputs allow safe, simultaneous testing of unrelated signals.
The SafeGround function protects both the device and computer from short circuits, while SureConnect instantly verifies proper probe contact. Integrated resistance measurement enables sensor testing without additional tools.
This oscilloscope is ideal for analyzing CAN/LIN systems, ignition pulses, fuel injection signals, and outputs from sensors or control units. Paired with Multi Channel software for spectrum analysis, data logging, and protocol decoding, the ATS610004D-XMSG becomes an essential tool for accurate and efficient diagnostics.
