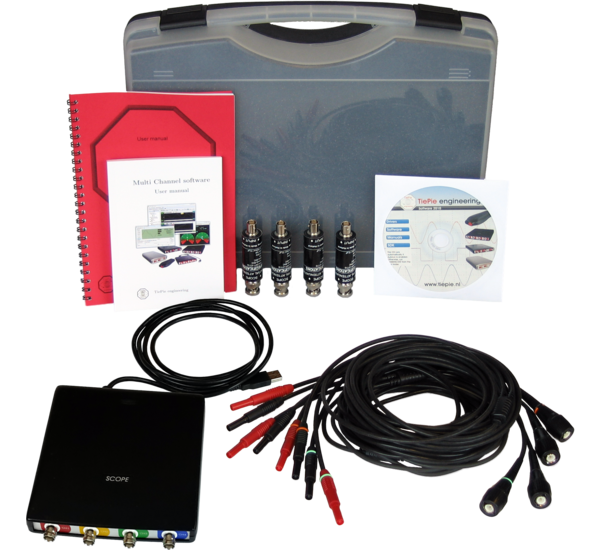

Automotive Test Scope ATS5004D is a four-channel differential USB oscilloscope designed for professional automotive electronics diagnostics. It allows safe, simultaneous measurement of four independent signals, avoiding ground loops and the risk of short circuits.
The oscilloscope offers 12, 14, or 16-bit resolution, up to 50 MSa/s sampling rate, and a 50 MHz bandwidth. Each channel has a 128k sample memory, enabling accurate capture of both short and long signal events. The SureConnect feature instantly indicates whether the probe is properly connected, and integrated resistance measurement makes it easy to test sensors without additional tools.
This model is particularly well-suited for diagnostics of sensors (lambda, crankshaft, temperature), ignition and injection systems, as well as viewing CAN, LIN, and other communication signals. It's an ideal tool for everyday use in automotive workshops where speed and accuracy matter.
Supported by Multi Channel software, it enables waveform analysis, spectrum analysis, data logging, and protocol decoding. The ATS5004D is a compact yet powerful solution for reliable and precise diagnostics.
