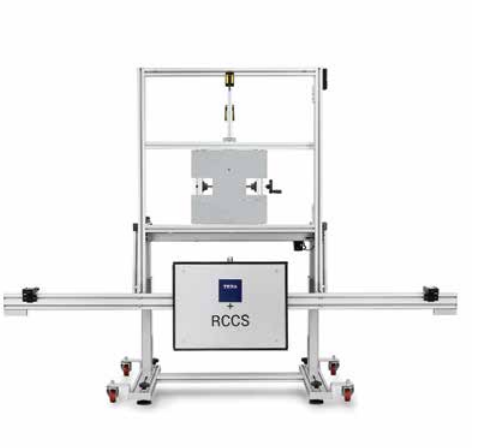

RCCS 3 with Monitor is TEXA’s solution for setting radars, lidars, cameras and sensors through the digital representation of the panels.
In fact, it is equipped with a 75-inch HD screen, 4K definition, which always offers an optimal display, meeting the 1:1 proportion ratio in line with the specifications of every manufacturer.
Furthermore, it is important to highlight that it does not deform nor resize the images.
This way workshops are sure to operate in the most proper and safe way, without risking to alter the vehicle’s behaviour on the road.
RCCS 3 communicates with the IDC5 software and guides the mechanic, step-by-step, to the quick and automatic identification of the vehicle. The panel is selected and set in the monitor, with no possibility of error.
Thanks to continuous software updates that each time offer new vehicles and eventually new panels, and to the essential help sheets edited per make and model, users are sure to complete any operation with maximum precision and to the highest standards, relying on an extraordinary coverage.
Intelligence and safety thanks to the Mini “on-board” PC
An actual Mini PC built into the unit, installed in the version RCCS 3 with Monitor, guarantees the use of an intelligent system that synchronises the ICD5 software and the TEXA unit perfectly. The images of the panels are transmitted and positioned automatically, based on the vehicle selection made. They are displayed through a linear, safe and quick process.
Precise, simple and quick adjustments and movements
RCCS 3 is made up by a very robust main support, which height can be adjusted thanks to its electrical operation. Using practical knobs, it can be easily tilted to the side and forward.
A handhwheel and a laser level allow also performing millimetric side movements. On top of the unit there is another laser level, very useful for finding the centre of the vehicle simply pointing it onto the front logo. The horizontal adjustment bar is equipped with two distance measurers and a reflecting plate, the latter with a central laser for the front radar’s aiming.
RCCS 3 is easy to move within the workshop thanks to its oversized pivoting wheels.
This technological equipment allows positioning RCCS 3 and aligning it correctly with respect to the vehicle and to the ground easily, with absolute precision and in complete safety.
