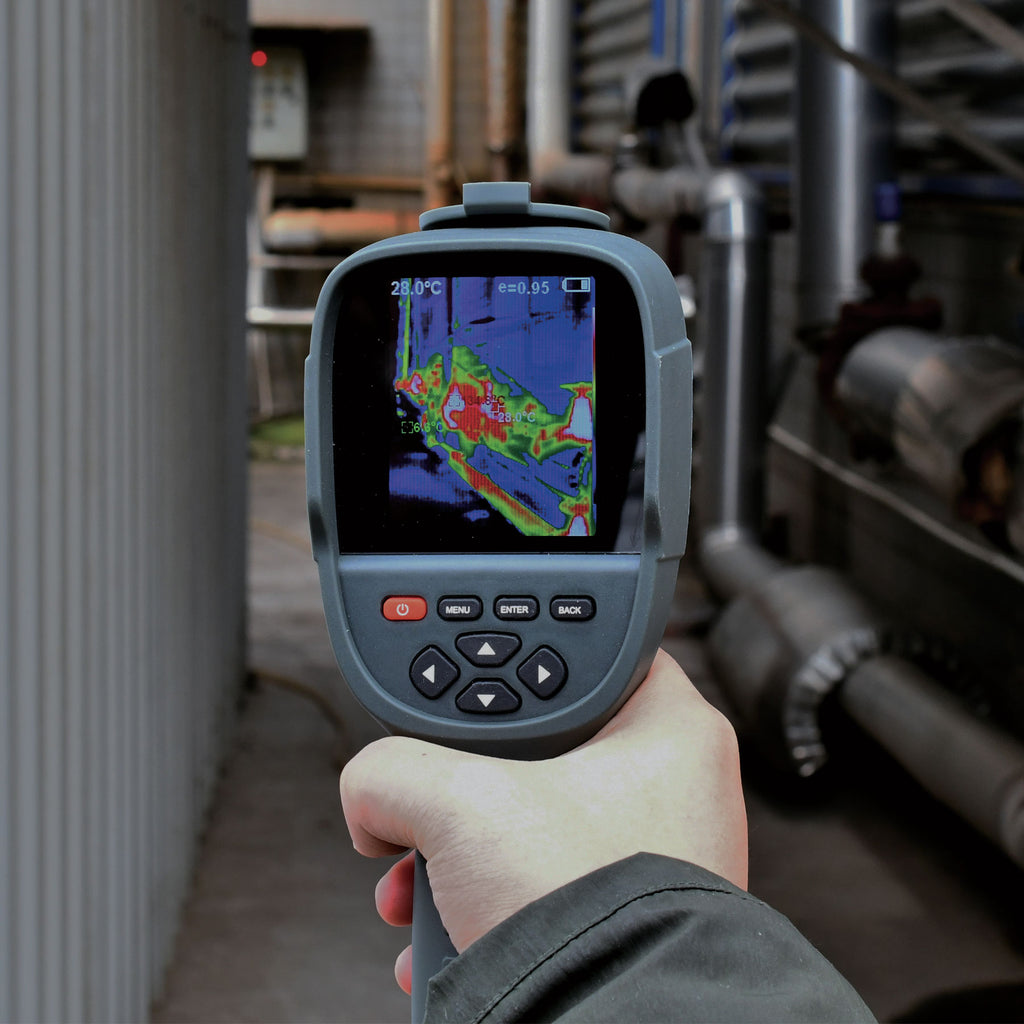

The ITC629 Infrared Thermographic Camera provides a 3.2" full angle view using the TFT display. Find hotspots, coldspots and other problems quickly. Check internal combustion engine monitoring, heated seats, brake performance, heated glass diagnosis, tire performance and much more.
Features
· Easily diagnose temperature-related issues
· Large 3.2" full angle TFT display
· Display resolution 320x240 pixels
· Visible Image Resolution 300,000 pixel
· Field angle 35°x26°
Specs
- Infrared Image Resolution: 220*160
- Display Screen: 3.2" full angle TFT display screen
- LCD Resolution: 320*240
- Visible Image Solution: 300,000 pixel
- Field Angle: 5°×26°
- Shortest Focus Length: 5.91 inches
- Thermal Sensitivity: 0.126°F
- Temperature Measurement Range: -4°F to 932°F
- Measurement Accuracy: ±3.6°F
- Emissivity: Adjustable from 0.01 to 1.00
- Wavelength Coverage: 8-14um
- Focus Mode: Fixed
- Color Palette: Rainbow, iron oxide red, cold color, black & white, white & black
- Storage Capacity: Built-in 3G (above 20 thousand image stored)
- Power Supply: Built-in Lithium Battery
- Continuous Work Time: 3 hours
- Automatic Power-off Time: Selectable5 minutes/20 minutes/ not power off
automatically
- Language: English, Chinese, Italian, German
- Head Unit Size:3.54*4.13*8.78 inches
- Head Unit Weight: 0.86 lb
- Work Temperature: 32°F~113°F
- Frame Rate of Thermal Images: 9Hz
